DX Monitor Analysis of the 3Y0X DXpedition

DX Monitor Analysis of the 3Y0X DXpedition

From February 8 to 19, 2006, a group of 21 hams led by K0IR and K4UEE operated from the rare DXCC Country, Peter 1 Island and made an astounding 87,034 QSOs. The first real spot to appear was made by K4TD at 0552z on February 8 and he was also the first station in the log. The last real spot was made by EA5ASQ, just 4 minutes before they went QRT.

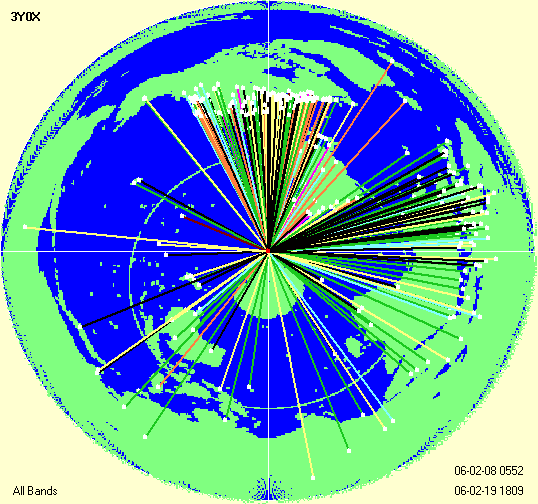

World as Seen from Peter 1 Island

DX Monitor is a Windows program which monitors the DX announcements available on the internet at DX Summit, HB9DRV and connections to one or more local and international DX Cluster Telnet Servers. Collected DX spots can be plotted, sorted and tabulated in many ways. DX Monitor now plots DX Spots on Google Earth on request or in real time as the spots arrive.

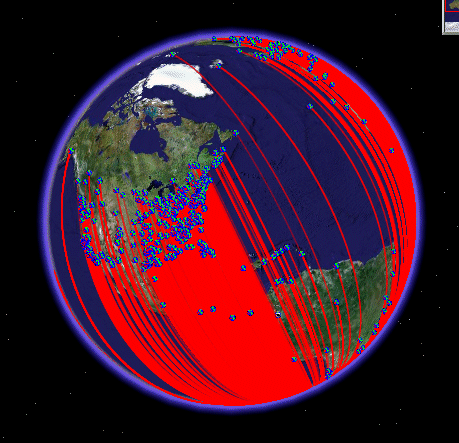

Google Earth View of 3Y0X Spots

The activity from 3Y0X by band by time of day in these scatter plots clearly shows that this was a 24/7 operation. [History Window: Plot - Activity by Day].

Spots by band by day

The yellow shading represents daylight hours at 3Y0.

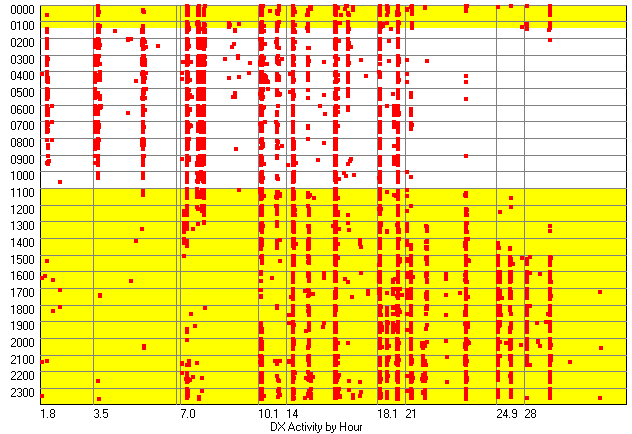

[History Window: Plot - Activity by Hour].

Spots by band by time of day

During the time they were operating, DX Monitor showed over 12,000 spots of 3Y0X by amateurs in 127 different countries. That is about 9% of the 132,000 spots for the month and almost 17% of the 71,000 spots that were posted while they were on the air. The total spots during the period of the DXpedition was more than the usual activity in February, which indicates that the DXpedition caused other DX stations to be active and on the air. [History Window: Show - Spotter Countries].

K United States 5105 I European Italy 703 JA Japan 575 DL Fed. Rep. of Germany 460 PY Brazil 372 G England 351 EA Spain 336 VE Canada 318 UA European Russia 292 F France 259 LU Argentina 254 SP Poland 213 ON Belgium 160 OH Finland 134 YV Venezuela 112 PA Netherlands 111

Spots for 3Y0X peaked on Wednesday, February 15 at 1700z with 101 spots in one hour when 10 meters opened up. The Top Ten Hours for DX spots are shown below [History Window: Show Hourly Rates in List]:

06-02-15 1700 101 06-02-15 2000 92 06-02-13 0400 90 06-02-14 1700 87 06-02-13 1700 86 06-02-15 1600 80 06-02-16 0200 78 06-02-13 0200 78 06-02-12 1800 76 06-02-12 1400 76

Propagation was better than expected on 10 meters at that time [Check Propagation].

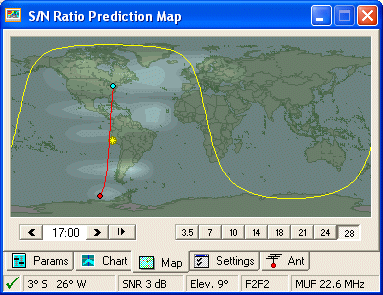

Propagation at 1700z, February 15, 2006

The number of spots per day peaked at 1415 on February 12 despite the poor conditions, SFI=76, A=7, K=0.

06-02-12 1415 06-02-13 1310 06-02-15 1239 06-02-14 1148 06-02-10 1109 06-02-16 1077 06-02-11 1076 06-02-09 944 06-02-18 833 06-02-17 773 06-02-08 624 06-02-19 485

The most active spotters were located all over the world and some of their comments made interesting reading. [History Window : Show - Most Active Spotters].

W3UR 53 W4DJ 43 WO2N 40 VE2TKH 38 JA9LJS 38 N4BAA 36 LU7HF 36 AD1C 36 UA3QDX 31 K9HMB 31 I1APQ 31 TI8CBT 28 WA4CQ 25 SV1BYI 25 N4NN 25 W2GG 24 LU2NI 24 W2GB 23 OH2RF 23 F8BBL 23 G0VDE 22 G0REK 22 W4ZAN 21 OZ7C 21 NE8Z 21 N8ZX 21 N7DC 21 N5GH 21 LW6DC 21 K6TA 21 EA5KY 21

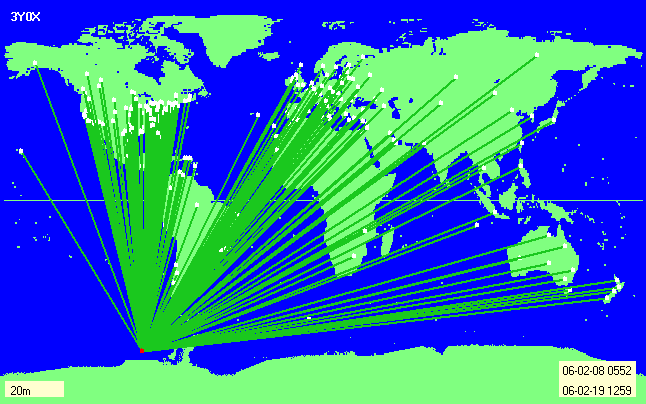

3349 spots on 20 meters
