DX Monitor Analysis of the TX9 DXpedition

DX Monitor Analysis of the TX9 DXpedition

From October 14 to 20, 2004, DJ8NK, Jan; DJ9ON, Dieter; DJ9RR, Heye; DK9KX, Hawa; DL3KDV, Dieter; DL5NAM, Chris and DL6JGN, Hans operated from the rare DXCC Country, Chesterfield Island.

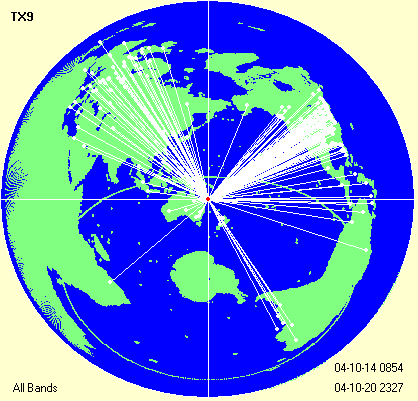

World as Seen from Chesterfield Island

DX Monitor is a Windows program which monitors the DX announcements available on the internet at DX Summit, HB9DRV and connections to one or more local and international DX Cluster Telnet Servers. Collected DX spots can be plotted, sorted and tabulated in many ways.

Most of the spots shown below are actual reception reports, but some "comment" spots may have slipped through.

Spots by band by day

The yellow shading represents daylight hours at TX9. The operation began on Thursday and ended on Wednesday.

During the week they were operating, the TX9 station was spotted 2,834 times by amateurs in 73 different countries. From the first spot by JJ0FVP at 0854z on October 14 to the QRT spot by OK2ZC at 1857z on October 20, the DX Spotting networks were alive with TX9 spots.

K United States 924 JA Japan 519 I European Italy 126 DL Fed. Rep. of Germany 112 HL South Korea 105 VE Canada 78 F France 70 UA European Russia 67 SP Poland 56 OH Finland 56

Looks like a lot of spots, but it only represented 13% of the 21813 DX spots during that period. Spots for TX9 peaked on Friday, October 15 at 0700z with 48 out of 86 spots in one hour. The Top Ten Hours for DX spots are shown below:

04-10-15 0700 48 04-10-16 1600 46 04-10-16 0800 46 04-10-16 1500 42 04-10-16 1100 38 04-10-15 1200 38 04-10-16 1000 36 04-10-16 0900 36 04-10-16 0200 36 04-10-16 0000 36

Propagation was pretty good to JA, Europe and USA at that time.

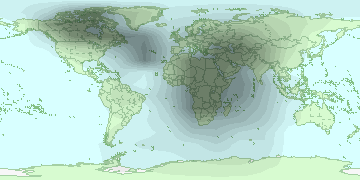

Propagation at 0700z, October 15, 2004

The number of spots per day varied from 155 on the first day to 623 (out of 2482 spots that day) when they were still fresh meat to many DXers.

04-10-15 623 04-10-16 620 04-10-19 430 04-10-17 366 04-10-18 359 04-10-20 282 04-10-14 155

The top 20 spotters were located all over the world and some of their comments made interesting reading.

VA3ABS 28 JA3EJG 24 KE1F 22 OK1RD 20 DS5KJR 19 W3UR 15 N0FW 15 OH5TQ 14 OH2RF 14 K0HA 14 JR9LKE 14 JA5XAE 13 HL2IFR 13 G3MCS 13 W4IU 12 UA6LV 12 N4KG 12 IZ5CML 12 DK1MAX 12

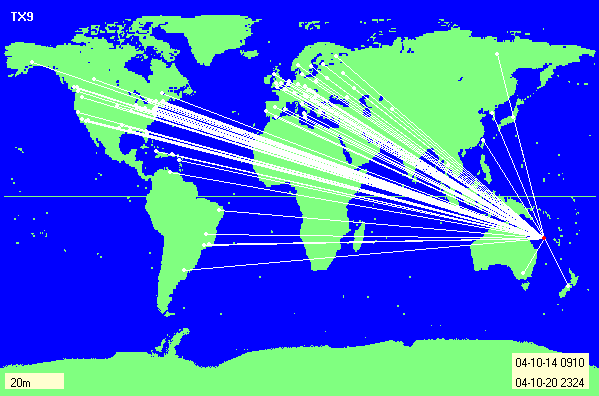

563 spots on 20 meters
